Teflon coated fabrics
ptfe/teflon coated fiberglass fabric
Features of ptfe glass fabric
* High temperature resistance — it can continuously work under-70 to 260°C , max resist high temperature up to 260°C.
* Non-adhesive — it can easily remove all kinds of adhesives such as resin, paint and chemical medicine, easy to clean.
* Corrosion resistance — it can resist acid, alkali, and various kinds of organic liquid corrosion.
* Good size stability — it has high tensile strength and good mechanical property.
* Fireproofing and flame resistance.
* insulation capability–it has ultraviolet resistance and static proofing.
* medicament resistant and non-poison.

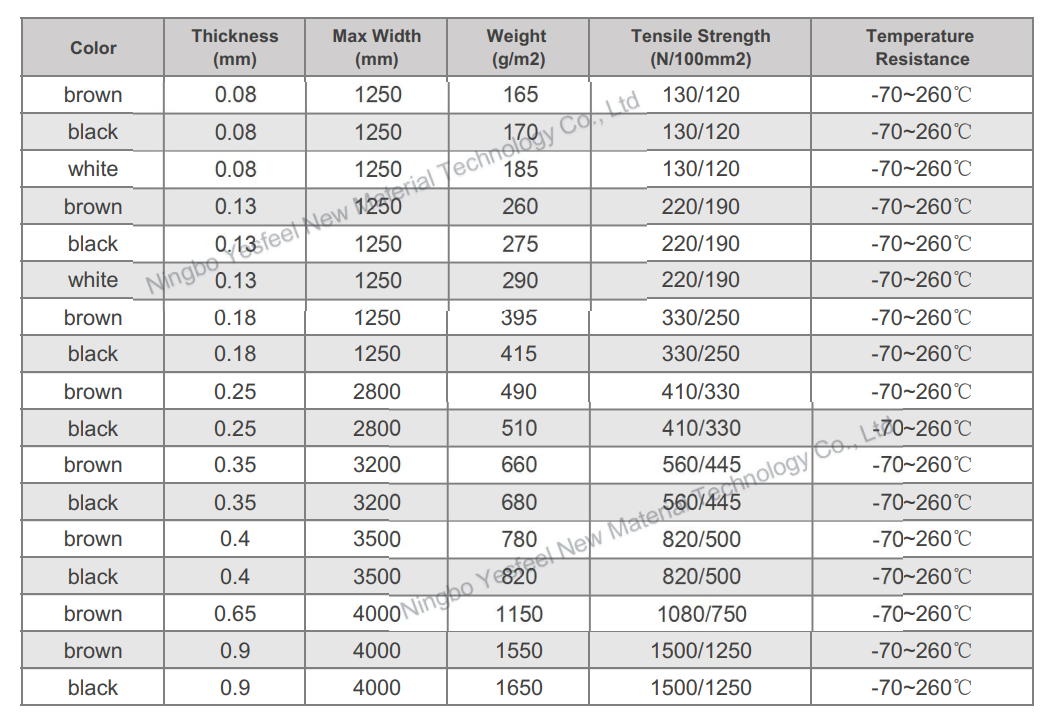

Detailed images
Item No
|
Color
|
Thickness
|
Max width
|
Weight
g/m² |
Tensile strength |
Temperature
|
HM008 | brown | 0.08mm | 1250mm | 165 | 130/120N/cm | -70 – 260℃ |
HM008B | black | 0.08mm | 1250mm | 170 | 130/120N/cm | -70 – 260℃ |
HM008W | white | 0.08mm | 1250mm | 185 | 130/120N/cm | -70 – 260℃ |
HM013 | brown | 0.13mm | 1250mm | 260 | 220/190N/cm | -70 – 260℃ |
HM013B | black | 0.13mm | 1250mm | 275 | 220/190N/cm | -70 – 260℃ |
HM013W | white | 0.13mm | 1250mm | 290 | 220/190N/cm | -70 – 260℃ |
HM018 | brown | 0.18mm | 1250mm | 395 | 330/250N/cm | -70 – 260℃ |
HM018B | black | 0.18mm | 1250mm | 415 | 330/250N/cm | -70 – 260℃ |
HM025 | brown | 0.25mm | 2800mm | 490 | 410/330N/cm | -70 – 260℃ |
HM025B | black | 0.25mm | 2800mm | 510 | 410/330N/cm | -70 – 260℃ |
HM035 | brown | 0.35mm | 3200mm | 660 | 560/445N/cm | -70 – 260℃ |
HM035B | black | 0.35mm | 3200mm | 680 | 560/445N/cm | -70 – 260℃ |
HM040 | brown | 0.40mm | 3500mm | 780 | 820/500N/cm | -70 – 260℃ |
HM040B | black | 0.40mm | 3500mm | 820 | 820/500N/cm | -70 – 260℃ |
HM065 | brown | 0.65mm | 4000mm | 1150 | 1080/750N/cm | -70 – 260℃ |
HM090 | brown | 0.90mm | 4000mm | 1550 | 1500/1250N/cm | -70 – 260℃ |
HM90B | black | 0.90mm | 4000mm | 1650 | 1500/1250N/cm | -70 – 260℃ |
Applications
* Used as various of liners to resist high temperature, such as microwave liner, oven liner, food drying or other liners.
* High insulation of electric: insulating belt of electric, septa, cushion, gasket. High frequency plank coated with copper;
* Heat resisting envelope, enswathing of heat insulation;
* Bind.ing of all sorts of petroleum and chemical pipeline to resist eroding, environmental sulfur separating of exhaust gas of electric factory
* It could be made into static resisting fabric.
