Silicone Fiberglass Fabric cloth

Silica Fiberglass Fabric cloth

Specifications

Silicone Fiberglass Fabric cloth
1.Temperature Resistant
2.Long using life upto 10 years
3.Electric insulation

Fire Resistant Silicone Coated Fiberglass Fabrics cloth

Silicone coated (impregnated) fiberglass fabrics are made of fiberglassbasic fabrics coated or impregnated with specially compounded silicone rubber on one or both sides. It has a lot of advantages such as high strength, fire retardant, high temp. resistance, chemical resistance, none-penetrative, non-toxic and so on.

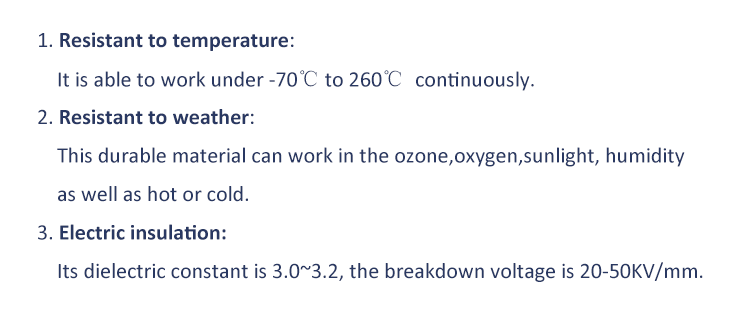

Properties:

–Used in temperature from-70°C to 230°C

–Ozone, oxide, light and weathering aging resistance, excellent weather ability used in outdoors and ages can be reached to 10 years.

It is a new complex material which has been widely used in such fields as: construction, electric insulation, pipeline ductile conjunction, chemical corrosion resistant, etc. and has got good using efficiency;

main using fields:

Electric insulation:

Fiberglass fabric material coated with silicon rubber has high electric insulation grade, and it could endure high voltage load, be made into insulated fabric, pipeline, etc Non-metal compensating facility:

Corrosion proofing field

Fiberglass fabric coated with silicon rubber could be used as external and internal corrosion proofing layer of pipeline and preservation jar, and it has excellent corrosion resistance, good capability to resist high temperature, high strength, so it is an ideal corrosion-proofing material.

Non-metallic compensator:

It used as pipeline flexible coupling. non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction.

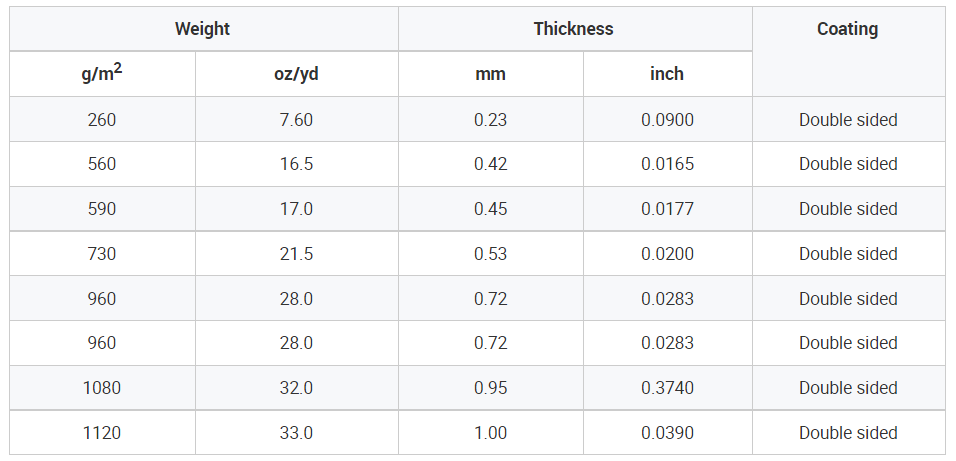

Specification of Silicone coated fiberglass fabrics

Item No



Thickness

mm

Breaking Strength

N/50mm

Bursting Strength

Mpa

Width

mm

Combustible



6013 0.13 1500/1200 2.0 0-1250 ≤25%
6025 0.25 1800/1500 2.1 0-2000 ≤25%
6040 0.40 2000/1600 2.2 0-2000 ≤25%
6050 0.50 2200/1800 2.3 0-2000 ≤25%
6060 0.60 2400/2200 2.4 0-2000 ≤25%
6070 0.70 2500/2300 2.4 0-2000 ≤25%
6080 0.80 2600/2400 2.5 0-2000 ≤25%
6090 0.90 2800/2600 2.5 0-2000 ≤25%
6100 1.00 3000/2800 2.6 0-2000 ≤25%
6120 1.20 3400/3000 2.5 0-2000 ≤25%
6150 1.50 3700/3300 2.3 0-2000 ≤25%
6200 2.00 4200/3800 2.2 0-2000 ≤25%
