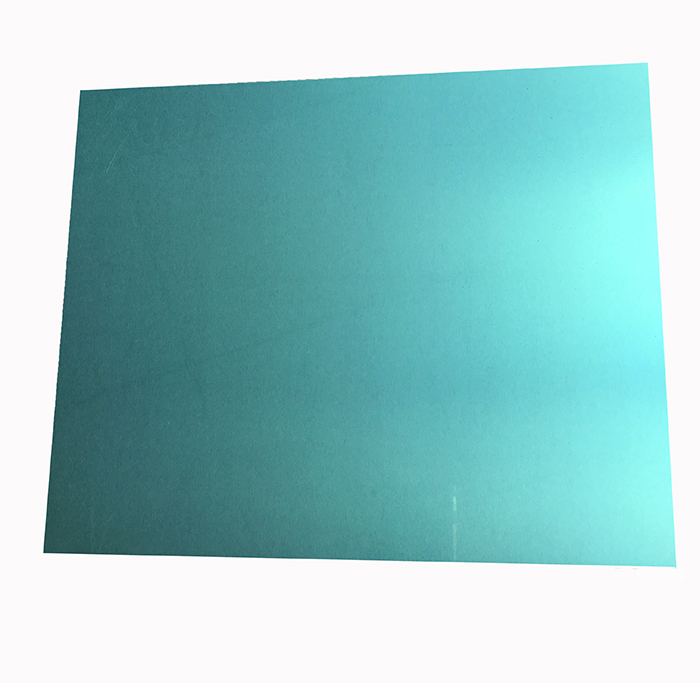

Aluminum base copper clad laminate

Aluminum based copper-clad laminate have excellent flame retardant, high mechanical strength, dimensional stability etc. Especially it has vey good heat sink, electromagnetic shielding and solder float.

Category: .

Application
It is widely used for the modifier and sparker on fire for motorcycle and mobile, power LED, sound box, power supply module and acoustics shielding system etx.

Thickness: 1.2mm, 1.5mm, 2.0mm
Copper Foil thickness: 18um, 35um, 70um
Boardsize: 600mm x 500mm, 1200mm x 500mm, 1200mm x 600mm

120um~130um Dielectric layer

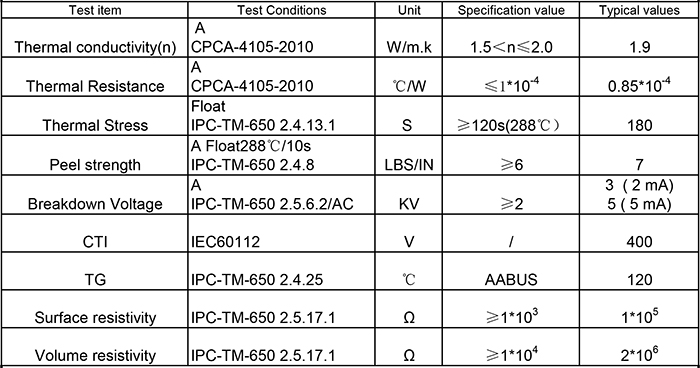

Technical Data

Packaging & Delivery

Packaging Details: carton box or wooden pallet according to customer requirements
Delivery Detail: within 20 days after your advance payment
